DAB
- SWITCHMATIC -1 x -230 Vac 50/60 /Hz 16 A /2,2 kW (2 HP)
- 0,5 ÷ 10 bar / IP55 40 ºC 50 ºC/ 0,4 kg /G1/4” F / NPT1/4” F
- Made In Spain
- SMART PRESS is an ON/OFF electronic device designed to switch the pump ON/OFF without using an expansion vessel.
- The device protects the pump against dry running without using level probes or float switch.
- It has an adjustable cut-in pressure and even with a high flow the pressure losses are small.
- All the SMART PRESS models have a MANUAL AND AUTOMATIC RESTART.
- 1.5HP
- V in: 1x220-240v
- 50/60hz
- V out:1x220-240v
- Amp: 10A MAX
- Size:16x11cm

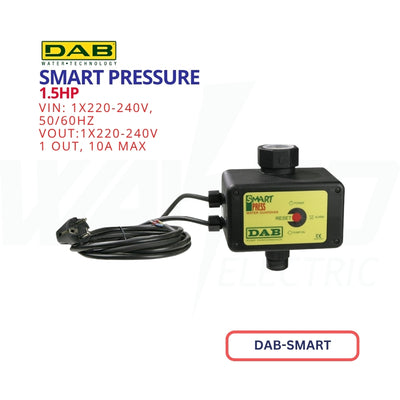

DAB Smart Press WG 1.5HP – Automatic Pump Controller
The DAB Smart Press WG 1.5HP is an advanced automatic pump controller designed to efficiently manage water pumps. It ensures constant pressure and protects the pump from dry running, extending its lifespan.
Features:
Automatic operation: Starts and stops the pump based on water demand.
Built-in dry run protection: Prevents damage by shutting off the pump in case of water shortage.
Reset button: Allows manual restart after an alarm or interruption.
LED indicators: Displays power, pump operation, and alarm status.
Voltage: 220-240V, Max current: 10A.
Protection rating: IP55, ensuring durability in harsh conditions.
Ideal for residential, agricultural, and industrial water systems, ensuring efficient and safe pump control. Made in Italy.
- Peripheral Pump - Kpf30/16m مضخة عادية (كمية مياه قليلة)
- 0.50HP/2.37amp/1phase 220v/ 1"/1"
- height(m) 31m = flow 0.30m3/hr
- 25m = flow 0.60m3/hr
- 22m = flow 0.90m3/hr
- 17m = flow 1.20m3/hr
- 10m = flow 1.80m3/hr
- DAB brand Made In Italy
- Peripheral Pump - Kpf38/18m مضخة عادية (كمية مياه قليلة)
- 1.0.80HP/4amp/1phase 220v/ 1"/1"
- height(m) 50m = flow 0.30m3/hr
- 41m = flow 0.90m3/hr
- 36m = flow 1.20m3/hr
- 27m = flow 1.80m3/hr
- 17m = flow 2.40m3/hr
- DAB brand Made In Italy
Improve hot and cold water pressure in your home with the DAB K20/9HA centrifugal booster pump. Designed for gravity-fed systems supplied by elevated, open-vented water tanks, it provides additional pressure for everyday household use.
The brass flow switch automatically starts and stops the pump when water is used, while manual operation offers added flexibility. Quiet operation and rubber feet help reduce vibration and keep the pump stable.
Key Features
-
Automatic & Manual Operation: Choose the operating mode to suit your needs.
-
Brass Flow Switch: Automatically controls operation according to water flow.
-
Hot & Cold Water Use: Designed for domestic water pressure boosting.
-
Quiet Operation: Suitable for residential settings.
-
Easy-to-Install Mounting Bracket: Simplifies installation.
-
Rubber Feet: Help reduce vibration and improve stability.
-
30cm Power Cable: Supplied with the pump.
-
Made in Italy: Sup
- Centrifugal Pump - K55/200T مضخة توربين (كمية مياه كبيرة)
- 0.55HP/3amp/1phase 220v/ 1"x 1"
- height(m) 20m = flow 1.8m3/hr
- 19m = flow 2.4m3/hr
- 17m = flow 3.6m3/hr
- 14m = flow 4.8m3/hr
- 8m = flow 6m3/hr
- DAB Brand Made In Italy
- Peripheral Pump - Kpf45/20m مضخة عادية (كمية مياه قليلة)
- 1.36HP/5.9amp/1phase 220v/ 1"/1"
- height(m) 76m = flow 0.30m3/hr
- 62m = flow 0.90m3/hr
- 56m = flow 1.20m3/hr
- 38m = flow 1.80m3/hr
- 24m = flow 2.40m3/hr
- DAB brand Made In Italy

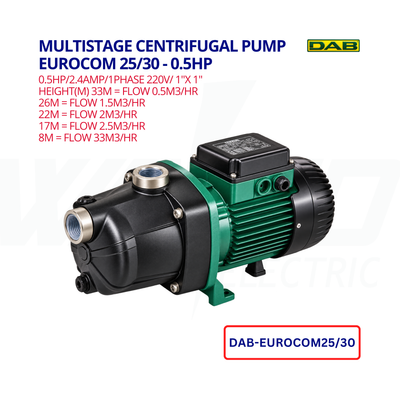

- Centrifugal Pump -EUROCOM 25/30M مضخة توربين (كمية مياه كبيرة)
- 0.5HP/2.4amp/1phase 220v/ 1"x 1"
- height(m) 33m = flow 0.5m3/hr
- 26m = flow 1.5m3/hr
- 22m = flow 2m3/hr
- 17m = flow 2.5m3/hr
- 8m = flow 33m3/hr
- DAB Brand Made In Italy
- SELF PRIMING Pump - JET62M مضخة شفط سراقة - سحب 9 امتار
- 0.60HP/3.12amp/1phase 220v/ 1"x1"
- height(m) 35m = flow 0.50m3/hr
- 30m = flow 1 m3/hr
- 27m = flow 1.5 m3/hr
- 24m = flow 2 m3/hr
- 21m = flow 3 m3/hr
- DAB brand Made In Italy
Improve household water pressure with the DAB K-HA30/12 automatic booster pump. Designed for boosting pressure in gravity-fed domestic water systems, it supports water delivery from elevated tanks to outlets below.
Made in Italy, this pump operates on a single-phase 220V supply and features ¾-inch inlet and outlet connections for integration into compatible plumbing installations.
Key Features
-
Automatic Operation: Convenient pressure boosting for household use.
-
Gravity-Fed Applications: Designed to boost downward water supply from elevated tanks.
-
Single-Phase Supply: Operates on 220V.
-
¾-Inch Connections: Matching inlet and outlet sizes.
-
Made in Italy: Manufactured by DAB.
Specifications
-
Brand: DAB
-
Model: K-HA30/12
-
Product Type: Automatic water pressure booster pump
-
Application: Gravity-fed domestic water systems
-
Listed Motor Power: 0.16HP
-
Listed Electrical Power: 128W
-
Voltage: 220V
-
Phase: Single phase
-
Inlet × Outlet: ¾″ × ¾″
-
Country of Manufacture: Italy
Pump Performance
| Pumping Head | Flow Rate |
|---|---|
| 11m | 0.50m³/h |
| 9m | 1.00m³/h |
| 7.5m | 1.50m³/h |
| 5.4m | 2.00m³/h |
| 2.6m | 2.50m³/h |
- Water Pump - K30/70M مضخة توربين (كمية مياه كبيرة)
- 1HP/6amp/1phase 220v/ 1"x1"
- height(m) 30m = flow 1.8m3/hr
- 27m = flow 3.6m3/hr
- 24m = flow 4.8m3/hr
- 20m = flow 6m3/hr
- 14m = flow 7.2m3/hr
- DAB brand Made In Italy
