LITHIUM Bat.
FELICITY
- LifePO4 BATTERY SYSTEM
- LPBA Series 48170
- Usable Capacity: 8.7KWH
- Nominal Voltage: 51.2
- Voltage Range: 48-57.6
- Recommend Charge Cut-off Voltage: 57.6
- Recommend Discharge Cut-off Voltage: 48
- MAX.Charge&Discharge current: 120A @ 10S
- Recommend Charge&Discharge current: <=80A
- MAX.Output Power: 6000W
- Recommend Output Power: 4000W
- DOD: >=95%
- Modules Connection: 1~12 in parallel
- Communication: CAN&RS485
- Ingress Protection: IP21
- Cycle Life: >=6000@25C, 80% DOD
- Working Temperature Range: Discharge:-20c to +60c, Charge: +0c to +55c
- Net Weight(KG): 70.5KG
- Gross Weight(KG): 88KG
- Product Dimension(MM); 755x600x160MM
- Package Dimension(MM): 855x700x330M
- NOTE: One group of LPB48V can be stacked up to 2 layers., and up to 12 in parallel connection

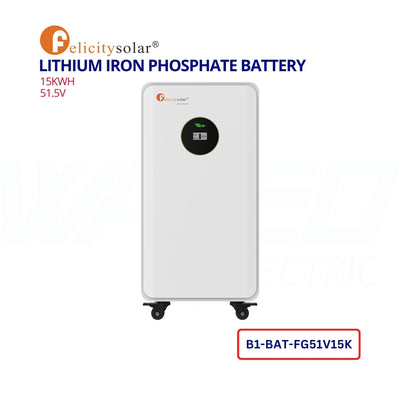

FELICITY 15KW
Lithium Iron Phosphate Battery
• Model: FLA48300
• Nominal Voltage: 51.2V
• Energy: 15kWh
• Operating Voltage: 44.8-57.6V
• Recommend Charge/Discharge Current: ≤ 150A
• Recommend Charge/Discharge Power: ≤ 7500W
• Scalability: Up to 15 units in parallel
• Communication: RS485 / CAN
• Cycle life: ≥ 6000@25°C, 80%DOD
• Charging Temp. Range: 0-55°C
• Discharging Temp. Range: -
Model: SK-51.2V200Ah (LB Version)
Cell Type: LiFePO4 (Square steel shell)
Brand: SAKO – Green & Smart
✅ Key Features:
• High Capacity: 10.24kWh nominal capacity – ideal for medium to large solar systems
• Usable Energy: 9216Wh (90% DOD)
• Charge Current: Up to 100A
• Discharge Current: Up to 150A / Max. 225A (1 sec burst)
• Charge Voltage Range: 56.0 – 57.6VDC
• Operating Voltage Range: 44.8 – 58.4VDC
• Operating Temperature: -10°C to +50°C
• Durable Steel Shell: For added safety and longevity
⚙ Recommended For:
• Residential or commercial solar power systems
• Solar-powered LED floodlights and outdoor lighting
• Energy storage with high reliability and stable performance
⚠ Important Warnings:
• Do not use in electric vehicles
• Do not mix different lithium battery types or capacities
• Avoid exposure to extreme heat (>50°C) or water
• Do not disassemble the battery case – contact the distributor for service
• Always follow proper wiring procedures to avoid damage or danger
