DAB

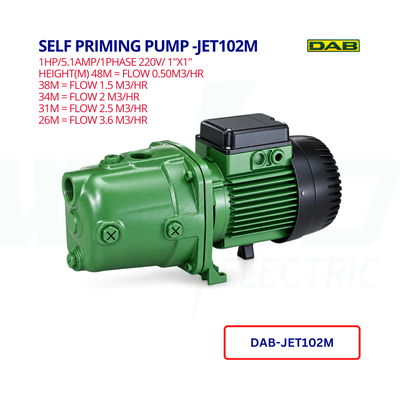

- SELF PRIMING Pump - JET102M مضخة شفط سراقة - سحب 9 امتار
- 1HP/5.1amp/1phase 220v/ 1"x1"
- height(m) 48m = flow 0.50m3/hr
- 38m = flow 1.5 m3/hr
- 34m = flow 2 m3/hr
- 31m = flow 2.5 m3/hr
- 26m = flow 3.6 m3/hr
- DAB brand Made In Italy
- Pressure Pump - K-HA30/15مضخة ضغط اوتوماتيك للمنازل (ضغط للمنازل)
- 0.25HP/178Watt/1phase 220v/ 3/4"x3/4"
- height(m) 14m = flow 0.5m3/hr
- 13m = flow 11m3/hr
- 11m = flow 1.5m3/hr
- 8m = flow 2m3/hr
- 5.4m = flow 2.6m3/hr
- DAB brand Made In Italy
1HP-6.3Amp-1Phase-220V
1.5HP-8.5Amp-1Phase-220V
2HP-10.8Amp-1Phase-220V
3HP-14Amp-1Phase-220V
- SELF PRIMING Pump - JET62M مضخة شفط سراقة - سحب 9 امتار
- 1.36HP/6.2amp/1phase 220v/ 1"x1"
- height(m) 56m = flow 0.50m3/hr
- 47m = flow 1.5 m3/hr
- 43m = flow 2 m3/hr
- 38m = flow 2.5 m3/hr
- 30m = flow 3.6 m3/hr
- DAB brand Made In Italy

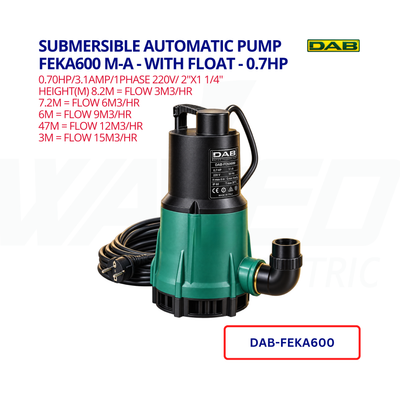

- Sumbersible Pump - FEKA600M-A مضخة غاطسة لمياه جور الصحية
- 0.70HP/3.1amp/1phase 220v/ 2"x1 1/4"
- height(m) 8.2m = flow 3m3/hr
- 7.2m = flow 6m3/hr
- 6m = flow 9m3/hr
- 47m = flow 12m3/hr
- 3m = flow 15m3/hr
- DAB Brand Made In Italy
- Pressure Pump - K-HA40/19 مضخة ضغط اتوماتيك للمنازل (ضغط للاسفل)
- 0.34HP/260Watt/1phase 220v/ 3/4"x3/4"
- height(m) 17m = flow 0.5m3/hr
- 16m = flow 1m3/hr
- 12m = flow 2m3/hr
- 10m = flow 2.5m3/hr
- 3.6m = flow 3.5m3/hr
- DAB brand Made In Italy

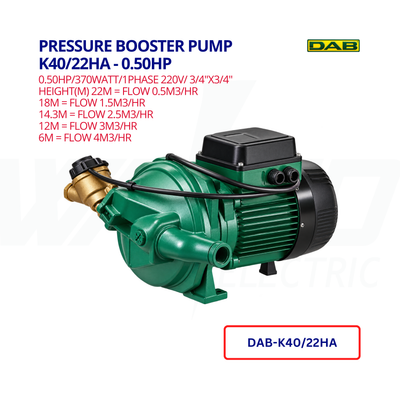

Improve household water pressure with the DAB K40/22HA automatic booster pump. Designed for gravity-fed domestic water systems, it boosts water pressure from elevated tanks to outlets below.
Made in Italy, this 0.5HP pump operates on a single-phase 220V supply. Its ¾-inch inlet and outlet connections integrate into compatible plumbing installations, while mounting feet allow secure placement.
Key Features
-
Automatic Operation: Convenient pressure boosting for domestic use.
-
0.5HP / 370W Power: Supports household water supply needs.
-
Gravity-Fed Applications: Boosts downward water supply from elevated tanks.
-
¾-Inch Connections: Matching inlet and outlet sizes.
-
Mounting Feet: Allow secure fixing to a suitable base.
-
Made in Italy: Manufactured by DAB.
Specifications
-
Brand: DAB
-
Model: K40/22HA
-
Product Type: Automatic water pressure booster pump
-
Application: Gravity-fed domestic water systems
-
Power: 0.5HP / 370W
-
Voltage: 220V
-
Phase: Single phase
-
Inlet × Outlet: ¾″ × ¾″
-
Country of Manufacture: Italy
-
Product Code: DAB-K40/22HA
Pump Performance
| Pumping Head | Flow Rate |
|---|---|
| 22m | 0.50m³/h |
| 18m | 1.50m³/h |
| 14.3m | 2.50m³/h |
| 12m | 3.00m³/h |
| 6m | 4.00m³/h |
- Water Pump - K35/40M مضخة توربين (كمية مياه كبيرة)
- 1HP/5.5amp/1phase 220v/ 1"x1"
- height(m) 41.5m = flow 1.2m3/hr
- 40m = flow 1.8m3/hr
- 38m = flow 2.4m3/hr
- 33m = flow 3.6m3/hr
- 23.5m = flow 4.8m3/hr
- DAB brand Made In Italy
- Submersible electric pump "LEADER PUMPS" mod. "SUPERSUB" -
- with float for automatic start and stop - built with anti-oxidation /
- corrosion materials and total absence of screws - suitable for drainage,
- emptying and small irrigation - (for 450A): power 280W - capacity lt / min 140 -
- head 7 m (for 460A): power 750W - flow rate lt / min 250 - head 9 m
6600 :
- Industrial Pump - DIVER6-6600M-A مضخةغاطسة للخزانات ( مياه نظيفة)
- 0.50HP/3amp/1phase 220v/ 1"
- height(m) 22m = flow 0.9m3/hr
- 19.5m = flow 1.8m3/hr
- 16m = flow 2.7m3/hr
- 12.5m = flow 3.6m3/hr
- 2m = flow 5.7m3/hr
- DAB Brand Made In Italy
6700 :
- Industrial Pump - DIVER6-6700M-A مضخةغاطسة للخزانات ( مياه نظيفة)
- 0.88HP/3.8amp/1phase 220v/ 1"
- height(m) 33m = flow 0.9m3/hr
- 28m = flow 1.8m3/hr
- 24m = flow 2.7m3/hr
- 17m = flow 3.6m3/hr
- 2m = flow 5.7m3/hr
- DAB Brand Made In Italy
6800 :
- Industrial Pump - DIVER6-6800M-A مضخةغاطسة للخزانات ( مياه نظيفة)
- 1HP/4.8amp/1phase 220v/ 1"
- height(m) 41m = flow 0.9m3/hr
- 35m = flow 1.8m3/hr
- 29m = flow 2.7m3/hr
- 22m = flow 3.6m3/hr
- 4m = flow 5.7m3/hr
- DAB Brand Made In Italy
- Water Pump - K35/100T مضخة دوبل توربين ( ضغط عالي كمية مياه كبيرة)
- 1.5HP/3.50amp/3phase 400v/ 1 1/2" x 1"
- height(m) 37.5m = flow 2.4m3/hr
- 35m = flow 4.8m3/hr
- 32m = flow 6m3/hr
- 28.5m = flow 7.2m3/hr
- 17.5m = flow 9.6m3/hr
- DAB Brand Made In Italy
- Water Pump - K45/50M مضخة دوبل توربين ( ضغط عالي كمية مياه كبيرة)
- 1.5HP/8.30amp/1phase 220v/1 1/4"x 1"
- height(m) 49m = flow 2.4m3/hr
- 46m = flow 18m3/hr
- 42m = flow 3.6m3/hr
- 37m = flow 4.8m3/hr
- 30m = flow 6m3/hr
- DAB brand Made In Italy
