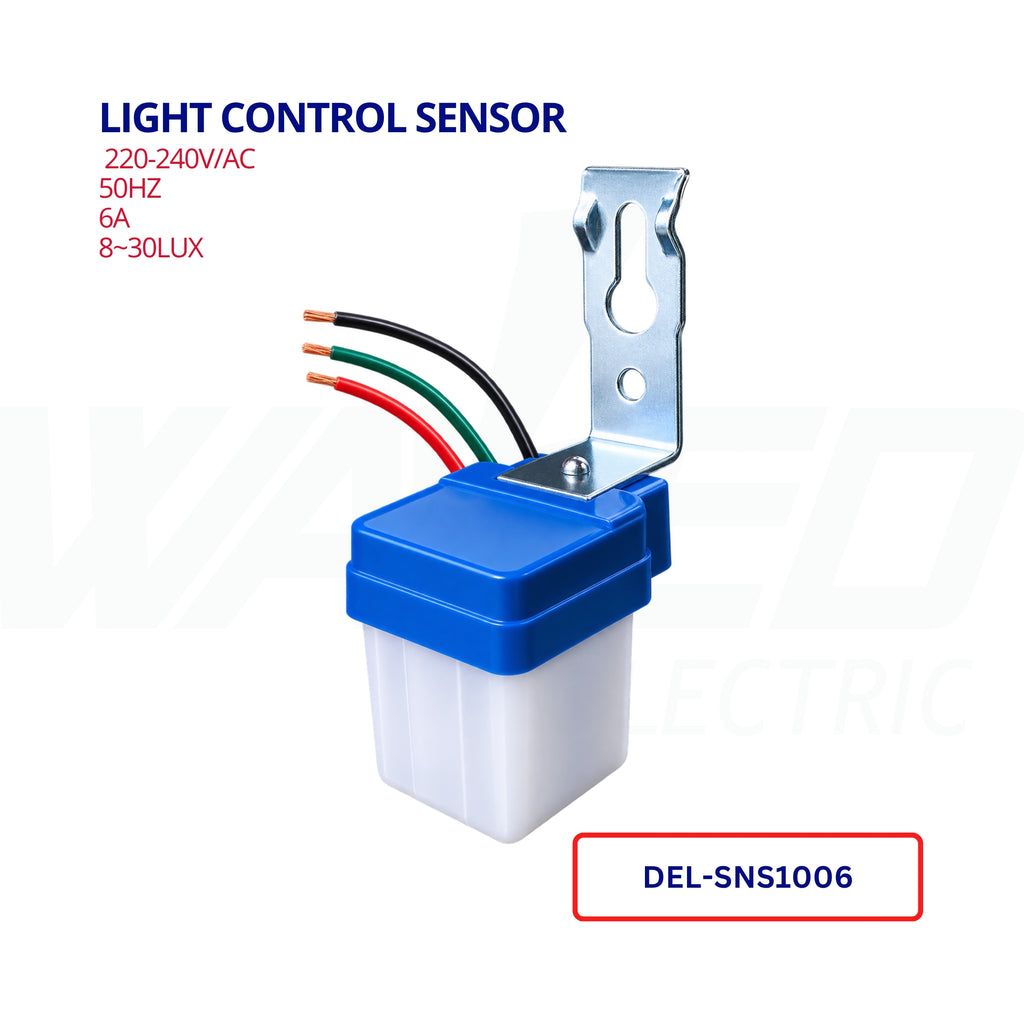

Light Control Sensor

Light Control Sensor
Regular price $5.00 Sale price $3.00

Light Control Sensor

  • Power : 220-240V/AC
  • Power Frequency : 50Hz
  • Power Current : 6A
  • Light Control : 8~30LUX

    Light Control Sensor

    • Power : 220-240V/AC
    • Power Frequency : 50Hz
    • Power Current : 6A
    • Light Control : 8~30LUX
      • AC/DC Power Adapter
      • Model:AWX-120W
      • Input:110v-240vac
      • 50/60hz  1.3A Max
      • Output:12/15/16/18/19v
      • ~5.5A Max
      • 20/24v    5A Max
    • SCREEN DIGITAL POTENTIOMETER - 5A
      Translation missing: en.products.product.regular_price $16.00
      • Screen Digital Potentiometer
      • Model:AWX-0324500
      • Input:100v-240v 50/60hz
      • Output:DC 3-24V-5A
    • Screen Digital Potentiometer - 3A
      Translation missing: en.products.product.regular_price $13.00
    • Longi Panel - 555w
      Translation missing: en.products.product.regular_price $99.00
    • Electrical characteristics

      Module type: LR5-72HPH-555M

      Testing Condition: STC    NOCT

      Max power (Pmax/W): 555    414.8

      Open circuit Voltage (Voc/v): 49.95     46.97

      Short circuit current (Isc/A):   14.04  11.35

      Voltage at maximum power (Vmp/V):42.10   39.11

      Currnt at maximum power (Imp/A):13.19    10.61

      Module efficiency(%)   21.7

      Weight    27.2kg

      Dimension:  2256x1133x35mm

      Cell orientation:   144(6x24)

      Operating Parameters

      Operational Temperature   -40°C~+85°C

      Power Output Tolerance    0~3%

      Voc and Isc Tolerance   ±3%

      Maximum System Voltage     DC1500V (IEC/UL)

      Maximum Series Fuse Rating    25A

      Nominal Operating Cell Temperature     45±2°C

      Protection Class   Class II

      Fire Rating    UL type 1 or 2           IEC Class C

      Temperature Ratings (STC)

      Temperature Coefficient of Isc     +0.050%/°C

      Temperature Coefficient of Voc     -0.265%/°C

      Temperature Coefficient of Pmax   -0.340%/°C




    • Digital Clamp Multimeter
      Translation missing: en.products.product.regular_price $30.00
    • Solar Panel Multimeter
      Translation missing: en.products.product.regular_price $100.00
