Solar
OREX
PWM Solar Charger Controller
For Solar Off-Grid System
- Rated Volt: 12/24V
- Rated Current: 20A
- Max PV Volt: 50V
- Max PV Input Power: 260w(12v) 520w(24v)
- Solar connector MC4/ C7type
- 1 pair price 1.80$
- Solar Panel Connector Y Branch Connector 1 to 2 Solar Connector Solar Cable Combiner
- Â 1 Male to 2 Female(M/FF) and 1 Female to 2 Male(F/MM) Solar Panel Cables and Connectors(1 Pair 1Y2)
EVGRN
Contactor 2Pole
- 2NO/2NC
- AUC1-25
- 230V-50/60Hz

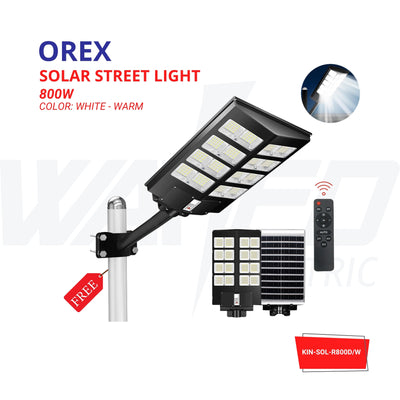

- Street Lamp 800Watt (without pool)
- Watt : 800W
- Color :Warm - 3500k & White - 6000K
- Product Features:
- Prevent Bask In Rain
- Super Strong Inf-rare Remote Control Receiving
- Tripe Waterproof of 5 Meters Wire
- 15 Meters Distance Wireless Remote ControlÂ
- High Quality Solar Energy ComponentsÂ
- High Lumens Led
- Lighting For More Than 10Hrs
- Solar Battery Charging,Zero Charge
- Easy Installation Without Wires
- The Led, The Green and Energy Saving
- High Quality Batteries, Long Service Life, Large CapacityÂ
- WarrantyÂ
 ELECTRICAL DATA / STC* |
CS7NÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 665MS |
Nominal Max. Power(Pmax)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 660W |
Opt. Operating Voltage(Vmp)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 38.5V |
Opt. Operating Current(Imp)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 17.28A |
Open Circuit Voltage(Voc)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 45.6VÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â |
Short Circuit Current(Isc)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 18.51A |
Module Efficiency                                               21.4% |
Operating Temperature                                      40-c ~ 85+c |
Max. System Voltage                                          1500V (IEC) or 1000V (IEC) |
Module Fire Performance                   CLASS C (IEC 61730) |
Max. Series Fuse Rating                                      30A |
Application Classification                                    CLASS A |
Power Tolerance                                               10+ ~ 0 W     |
Dimension                                                      2384x1303x35mm                                                                      (93.9x51.3x1.38in) |
Weight                                                                34.4kg (75.8lbs) |
* Under Standard Test Conditions (STC) of irradiance of 1000 W/m rature of 25C
 TEMPERATURE CHARACTERISTICS |
Specification                                                       Data |
Temperature Coe fficient (Pmax)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 0.34- % / C |
Temperature Coe fficient (Voc)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 0.26- % / C |
Temperature Coe fficient (Isc)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 0.05 % / C |
Nominal Module Operating Temperature             3+-42C |
For Battery Up to 200A
- Solar Charger Controller 30A for solar off-grid system - OREX
- Solar Panel Mono Crystal 350W - OREX
- COVAX
- Hybrid Smart Solar Inverter
- WITHOUT WIFI
-
- Inverter Charger:
- Model Name: CV-II-M-PLUS 6.2KW-48V
- Operating Temp Range: -10~50°C
- PV INPUT:
- Nominal Operating Volt: 360VDC
- Vmax: 500VDC
- PV Input Volt Range: 90~450VDC
- Imax PV: 27A
- Full load MPPT Range: 240~450VDC
- Rated Power ;6500W
- Max Solar Charging Current: 120A
- Grid/AC OUTPUT:
- Nominal OUTPUT Volt: 220/230/240VAC
- Feed-in Grid VOLT Range: 195~253VAC
- Feed-in Grid Freq.Range: 49~511+-Hz
- Nominal Output Current: 27.0A
- Power Factor Range:>0.99
- Max Conversion Efficiency(DC/AC):97%
- Nominal Operating Freq: 50/60Hz
- AC INPUT:
-
Nominal Operating Volt: 230VAC
- Max. input current: 40A
- Nominal Operating Freq: 50/60Hz
- Surge Power:12400VA
- Max AC Charging Current: 100A
- BATTERY:
-
Battery Volt Range: 40~63VDC
- Max Battery Current: 125A
- Dimension: 15x30x45cm
COVAX
Hybrid Smart Solar Inverter
- Model Name: CV-ECO-3.0KW-24
- Operating Temp Range: -10~50°C
- Inverter ModeÂ
- Rated Power ; 3000VA/3000W
- DC Input : 24VDC, 125A
- AC Output: 230VAC- 50/60Hz - 13A
- AC Charger ModeÂ
- AC input: 230VAC - 50/60Hz-19.6A
- DC Output :Â 27VDC
- AC Output ; 230VAC, 50/60Hz,13A
- Max AC Charging Current: 60A
- Solar Charger ModeÂ
- Rated Power : 3000W
- Nominal Operating Volt: 240VDC
- Max Solar Volt(VOC) ; 450VDC
- MPPT Volt Range 90~430VDC
- Max Solar Charging Current: 80A
- Dimension: 10x26x43cm
DEYE
CLEAN POWER FOR YOUÂ
THREE PHASE STRING INVERTERÂ
SUN-50K-G03
ON GRIDÂ
WITH WIFIÂ
 Model                                          SUN50-K-G03 |
 Input side |
Max DC Input Power (KW) | Â 65 |
Max DC Input Voltage (V) | 1000 |
Start-up Dc Input Voltage (V) | 250 |
MPPT Operating Range(V) | 850~200 |
Max Dc Input Current (A) | 40+40+40+40 |
Max Short Circuit Current (A) | 60+60+60+60 |
Number of MPPT/Strings per MPPT |
3/4
|
Output Side |
Rated Output Power (KW) | Â 50 |
Max. Active Power (KW) | 55 |
Nominal Output Voltage/Range (V) |
3L/N/PE 380V/0.85Un1.1-Un,400V/0.85Un1.1-Un |
Rated Grid Frequency (Hz) | 60/50(Optional) |
Operating Phase | three phase |
Rated Ac Grid Output Current (A) | Â 72.5 |
Max. Ac Output Current (A) | 79.5 |
Output Power Factor | 0.8 leading to 0.8 lagging |
Grid current THD | <%3 |
DC Injection Current (mA) | <%0.5 |
Grid Frequency Range |
52~47 or 62~57(Optional)
|
 Efficiency |
Max. Efficiency | Â %98.7 |
Euro Efficiency | %98 |
MPPT Efficiency |
>%99
|
 Protection |
DC Reverse-Polarity Protection |  Yes |
AC Short Circuit Protection | Yes |
AC Output Overcurrent Protection | Yes |
Output Overvoltage Protection | Yes |
Insulation Resistance Protection | Yes |
Ground Fault Monitoring | Yes |
Anti-islanding Protection | Yes |
Temperature Protection | Yes |
Integrated DC switch | Yes |
Remote software upload | Yes |
Remote change of operating parameters | Yes |
Surge protection | DC Type II/AC Type II |
 General Data |
Size (mm) | Â 647.5Wx537Hx303.5D |
Weight (kg) | 44.5 |
Topology | Transformerless |
Internal Consumption | <1W (Night) |
Running Temperature | 65~25 , >45 derating |
Ingress Protection | IP65 |
Noise Emission (Typical) | <45 dB |
Cooling Concept | Smart cooling |
Max. Operating Altitude Without Derating | 2000m |
Warranty | 5 years |
Grid Connection Standard |
CEI21-0,VDE-AR-N4105,NRS097,IEC62116,IEC61727,G99.G98,VDE-1-1-0126,RD1699,C11-10 |
Operating Surroundings Humidity | %100-0 |
Safety EMC/Standard |
IEC/EN 4/3/2/1-6-61000,IEC/EN 1-62109,IEC/EN 2-62109Â |
 Features |
DC connection |  MC4-mateable |
AC connection | IP65 rated plug |
Display | LCD 160X240 |
Interface | RS485/RS232/WIFI/LAN |
Cleon Deep Cycle Solar Tubular Batteries.
CLEON batteries are manufactured in state-of-the-art plant on latest machinery under strict quality standards using the best raw materials and 6X technology to give you a longer life, extra backup and fast recharge feature .
- Leading exporters of Tubular Batteries
- Deep cycle Tubular C20 rating batteries
- Specially designed and produced for roof top, street lights,home lighting,hybrid inverter, solar power plant,railway signalling , telecommunication and navigational system on latest Plant and Machinery to give you more life,more backup and less water topping up.
- 2000 cycles to 50%DOD..
We Can't Ship it by Aramex (Delivery Charge According To region)
- Model : NM 1500-12
- Operating TempRange: 10~50C°
- Rated power : 1500VA/1500W
- DC Input : 12VDC, 125A
- AC Output: 230VAC- 50/60Hz - 6.5A
- AC Charge Mode:
- AC Input: 230VAC. 50/60Hz, 5.57A
- DC Output: 13.5VDC
- AC Output: 230VAC, 50/60Hz, 6.5A
- Solar Charger ModeÂ
- Rated Power : 2000W
- Nominal Operating Volt: 240VDC
- MAX Solar Volt(VOC): 450VDC
- MPPT Volt Range: 90-430VDC
- MAX Solar Charging Current: 80A
