Gewiss
The GEWISS is an angled surface-mounting socket outlet rated at 32A and 380–415V. It features a 3P+E configuration, screw terminals and a red hinged cover.
Key Features
-
Angled housing for surface mounting.
-
3P+E configuration.
-
Screw-terminal wiring.
-
Hinged protective cover.
Specifications
-
Brand: GEWISS
-
Rated Current: 32A
-
Rated Voltage: 380–415V
-
Frequency: 50/60Hz
-
Protection Rating: IP44
-
Colour: Red
-
Earth Contact Position: 6h
-
Cable Entry: PG21
The GEWISS features a 2P+E configuration for 200–250V connections. This 32A socket outlet combines an angled surface-mounting housing with screw terminals and a blue hinged cover.
Key Features
-
Angled surface-mounting design.
-
2P+E configuration.
-
Screw-terminal wiring.
-
Blue hinged protective cover.
Specifications
-
Brand: GEWISS
-
Rated Current: 32A
-
Rated Voltage: 200–250V
-
Frequency: 50/60Hz
-
Protection Rating: IP44
-
Colour: Blue
-
Earth Contact Position: 6h
-
Cable Entry: PG21
The GEWISS is a surface-mounting socket outlet rated at 16A and 380–415V. Its angled housing incorporates a red hinged cover and screw terminals.
Key Features
-
Angled socket with surface-mounting housing.
-
3P+E configuration.
-
Screw-terminal wiring.
-
Hinged protective cover.
Specifications
-
Brand: GEWISS
-
Rated Current: 16A
-
Rated Voltage: 380–415V
-
Frequency: 50/60Hz
-
Protection Rating: IP44
-
Colour: Red
-
Earth Contact Position: 6h
-
Cable Entry: PG21
The GEWISS GW-62220H HP socket outlet features a 10° angled design for flush mounting. Rated at 32A and 380–415V, it includes screw terminals and a red hinged cover.
Key Features
-
10° angled flush-mounting design.
-
Screw terminals for wiring.
-
Hinged protective cover.
Specifications
-
Brand: GEWISS
-
Configuration: 3P+E, as listed in the supplied specifications
-
Rated Current: 32A
-
Rated Voltage: 380–415V
-
Frequency: 50/60Hz
-
Protection Rating: IP44/IP54
-
Colour: Red
-
Earth Contact Position: 6h
-
Mounting Flange: 80 × 95 mm
-
Fixing Centres: 60 × 70 mm
Gewiss
- Industrial Socket
- 16A-6h
- ip44
- 200-346v / 240-415v
- 50-60 Hz

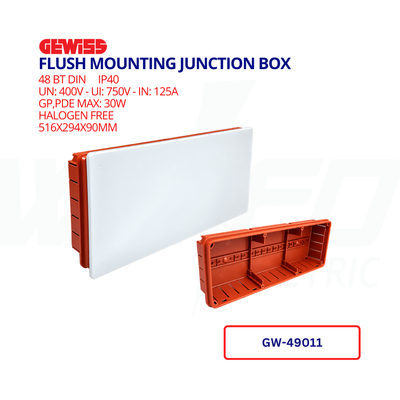

GEWISS
48 BT DIN IP40
- Un: 400V
- Ui: 750V
- In: 125A
- GP,Pde max: 30W
- Halogen Free
- size: 516x294x90mm
- Made in ITALY
GEWISS
48 BT DIN IP40
- Un: 400V
- Ui: 750V
- In: 125A
- GP,Pde max: 29W
- Halogen Free
- size: 516x202x90mm
- Made in ITALY

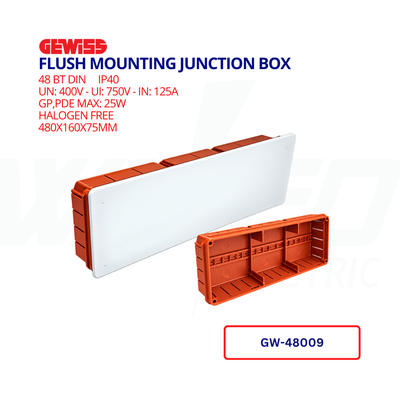

GEWISS
48 BT DIN IP40
- Un: 400V
- Ui: 750V
- In: 125A
- GP,Pde max: 25W
- Halogen Free
- size: 480x160x75mm
- Made in ITALY

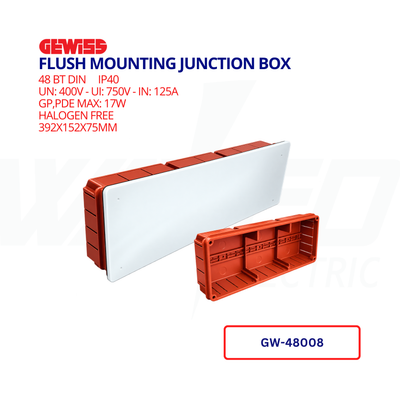

GEWISS
48 BT DIN IP40
- Un: 400V
- Ui: 750V
- In: 125A
- GP,Pde max: 17W
- Halogen Free
- size: 392x152x75mm
- Made in ITALY
GEWISS
48 BT DIN IP40
- Un: 400V
- Ui: 750V
- In: 125A
- GP,Pde max: 13W
- Halogen Free
- size: 294x152x70mm
- Made in ITALY
GEWISS
48 BT DIN IP40
- Un: 400V
- Ui: 750V
- In: 125A
- GP,Pde max: 11W
- Halogen Free
- size: 196x152x70mm
- Made in ITALY
GEWISS
48 BT DIN IP40
- Halogen Free
- size: 160x130x70mm
- Made in ITALY
