Contactor – 80A Motor Control Unit (AC3, 3-Phase) - EVGRN
Regular price
$70.00

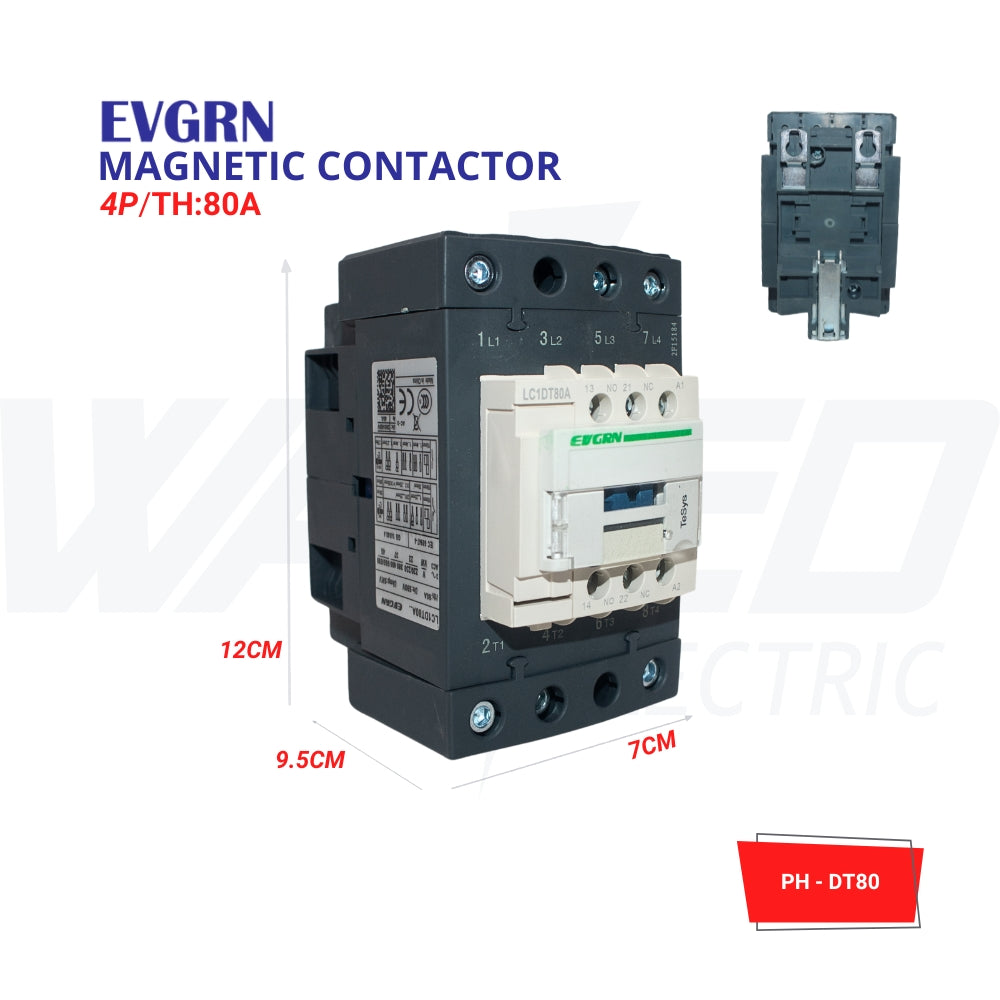

The EVGRN LC1DT80A is a heavy-duty 80A contactor built for high-capacity motor control applications. With a motor power handling capacity of up to 45 kW at 690V, it’s ideal for large industrial machines and demanding electrical systems.
Key Specifications:
• Rated Current (Ith): 80A
• Insulation Voltage (Ui): 690V
• Impulse Withstand Voltage (Uimp): 6kV
• Motor Power Rating (AC3):
• 220/230V: 22 kW
• 380/400V: 37 kW
• 660/690V: 45 kW
• Standards & Certifications:
• IEC 60947-4
• GB 14048.4
• CE Marked
• Terminal Capacity: Up to 2×25 mm² cables
• Mounting & Connection: Includes detailed torque specs and wiring guide
• Country of Origin: Made in China
Applications:
Designed for controlling high-power 3-phase motors, this 80A contactor is perfect for industrial manufacturing, large HVAC systems, and high-load automation setups requiring robust performance and safety compliance.
